Hi.Im from portugal and this is my project.Yeah i know..call me crazy,but i enjoyed doing it XD

It used to be 1.4D,and swapped for a 1.5 from a 106. Then i got bored..I had this 1.9D from a Partner laying around so decided to have some fun, all made with "scrap"
The intercooler isnt the best,already bought one, and a bigger radiator

Some pictures:

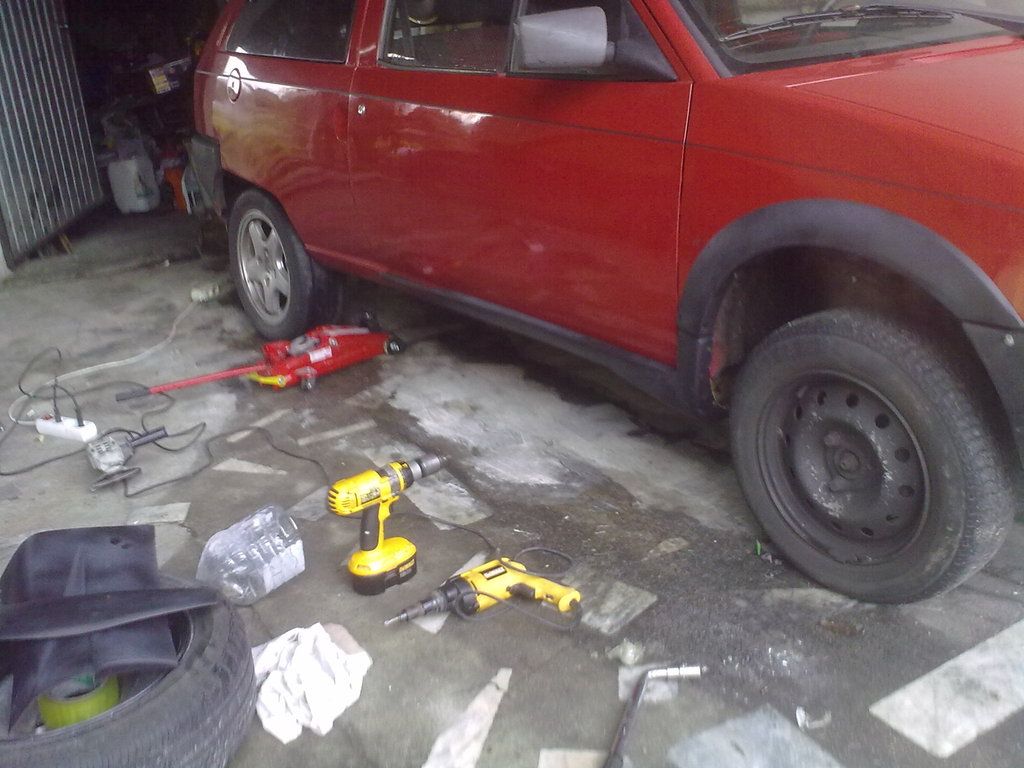

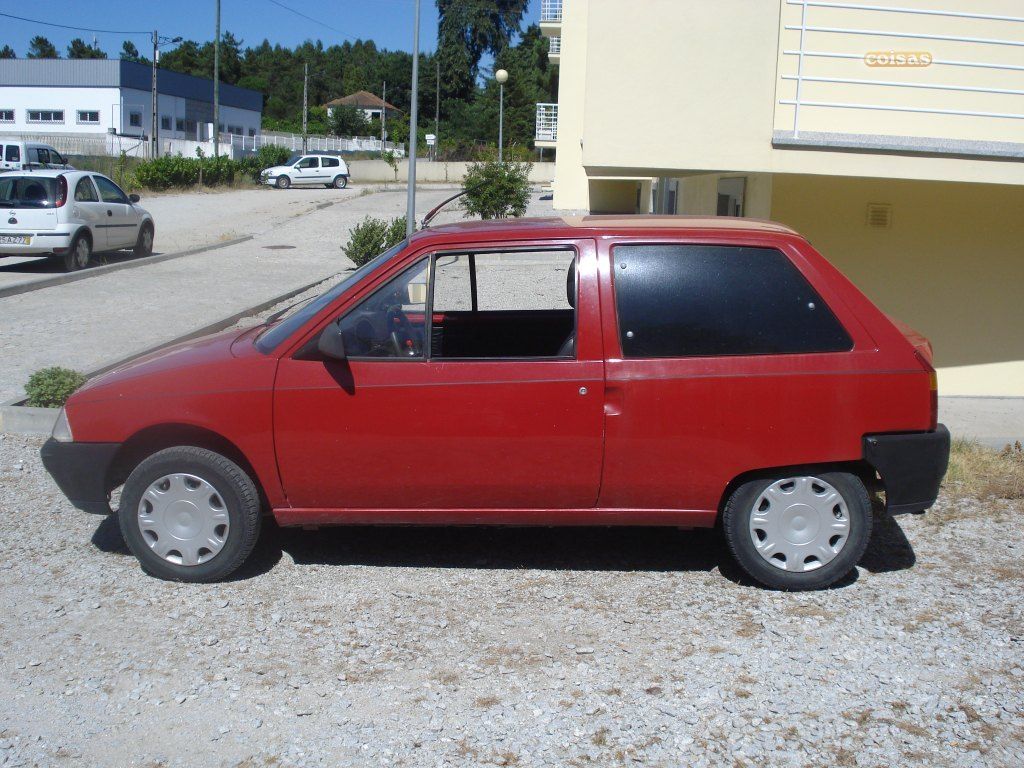

When i bought it
Image[/URL]

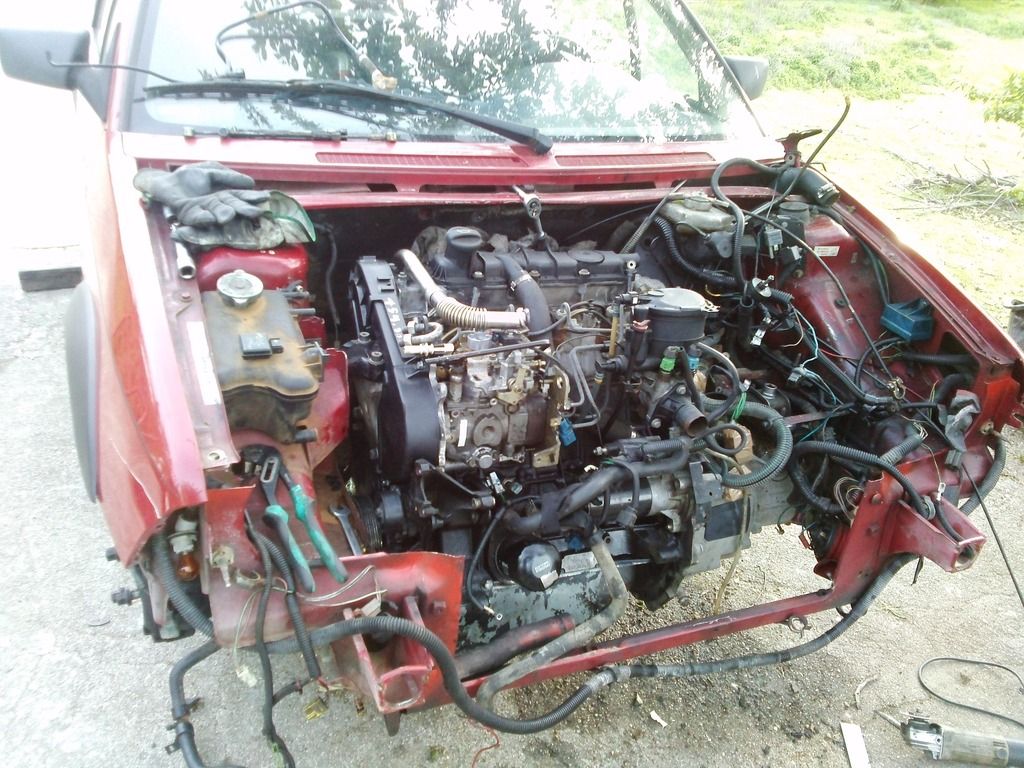

Swap 1.5
Image[/URL]

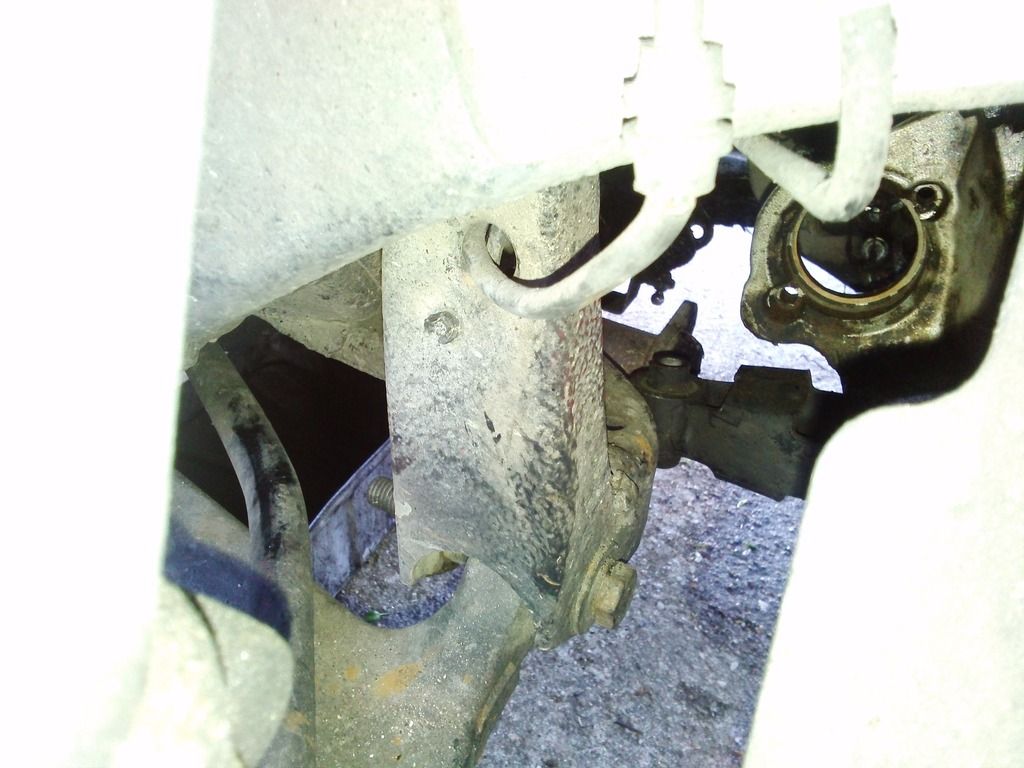

4 Studs
Image[/URL]
Image[/URL]

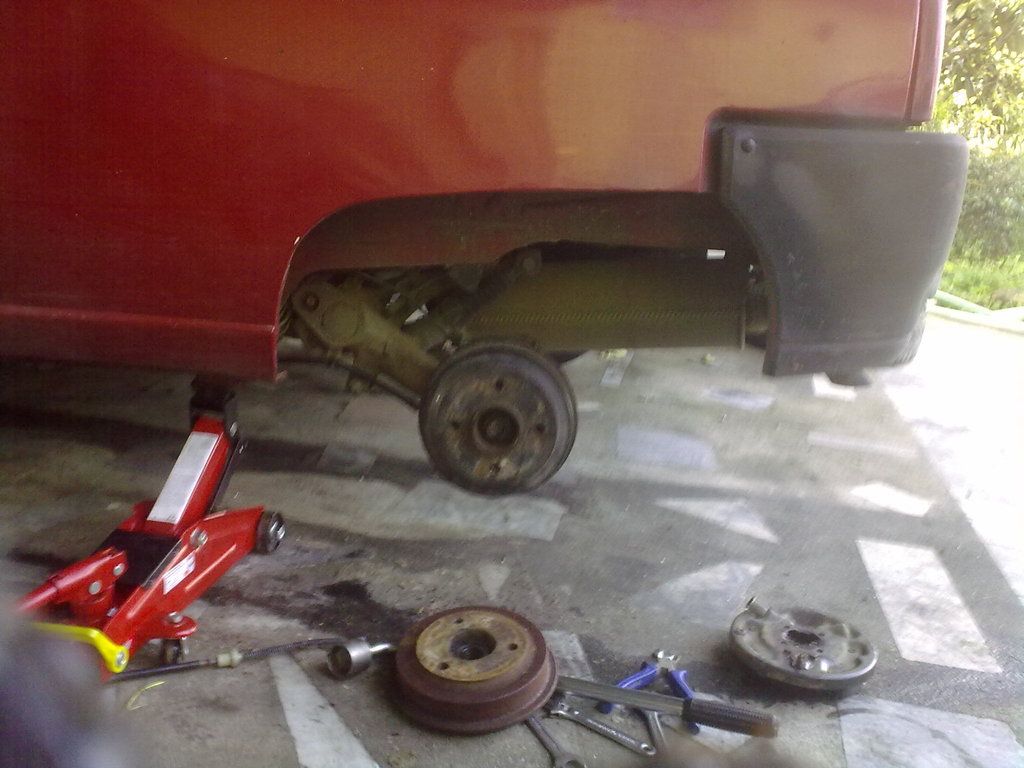

Kit ax gti
Image[/URL]
Image[/URL]
Image[/URL]
Image[/URL]
The 1.9D from a Partner
Image[/URL]
Image[/URL]

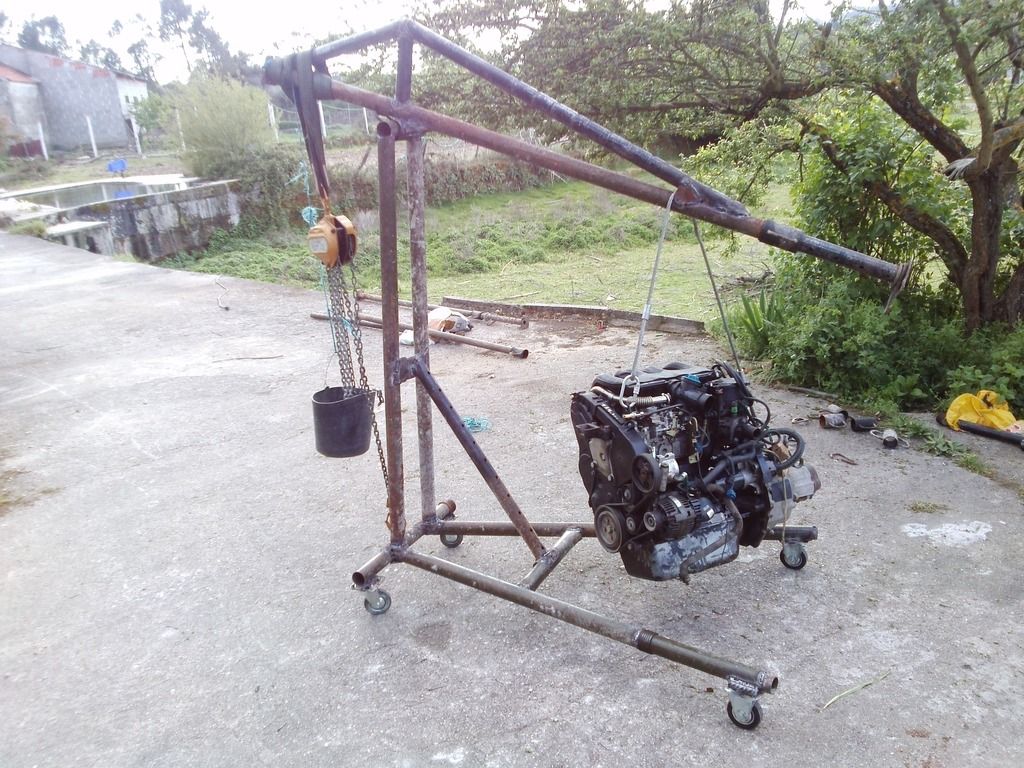

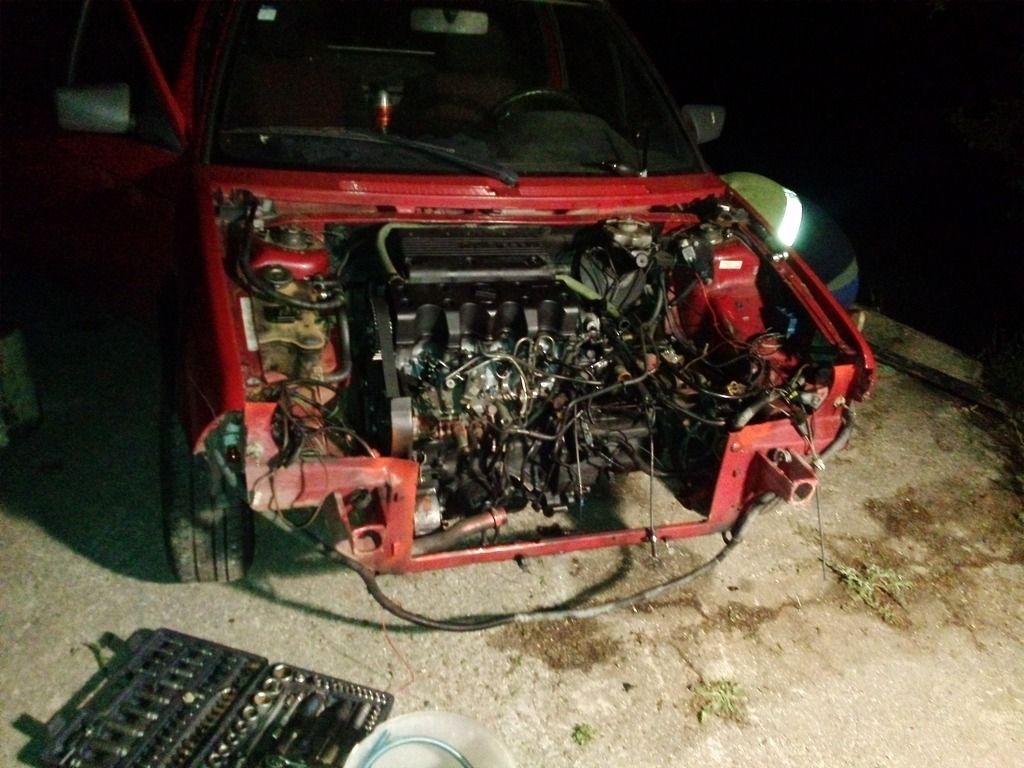

OUT goes the 1.5D
Image[/URL]
1.9D test fit
Image[/URL]

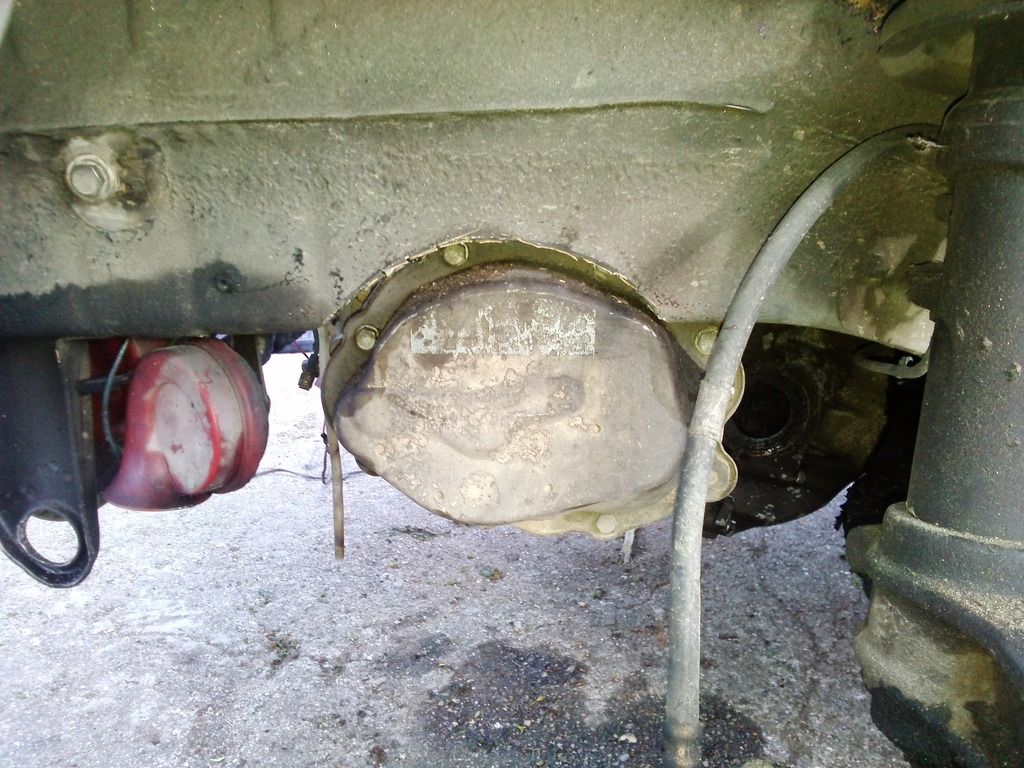

The gearbox was too big lol
Image[/URL]

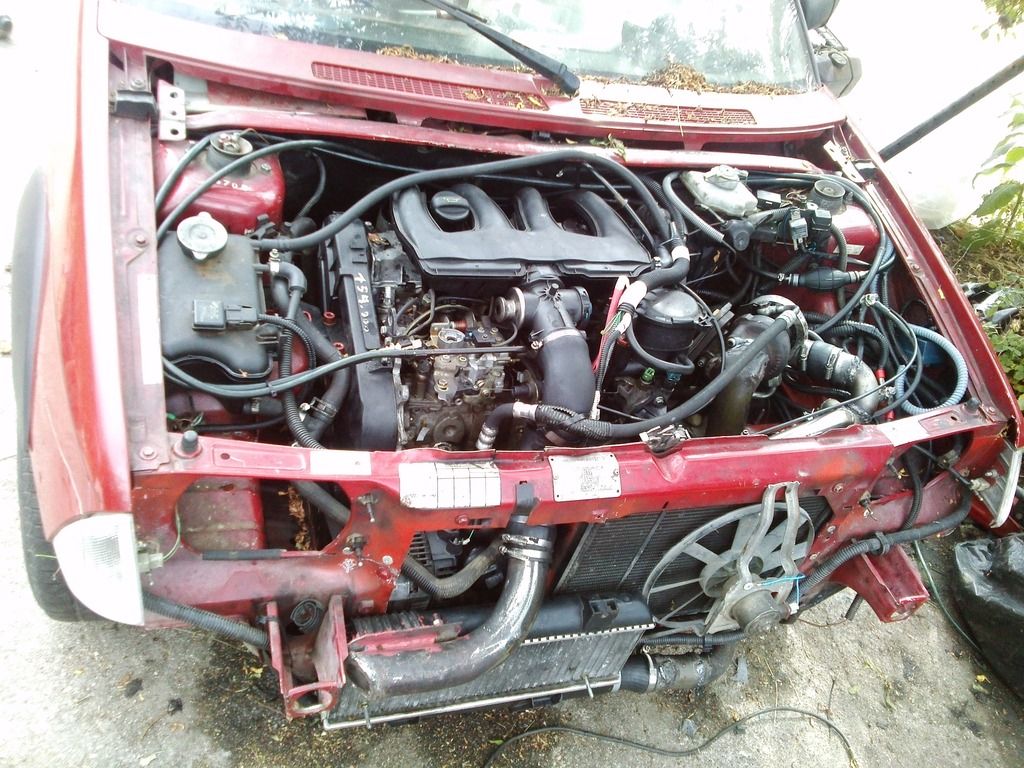

Its in :P
Image[/URL]
Image[/URL]
Image[/URL]

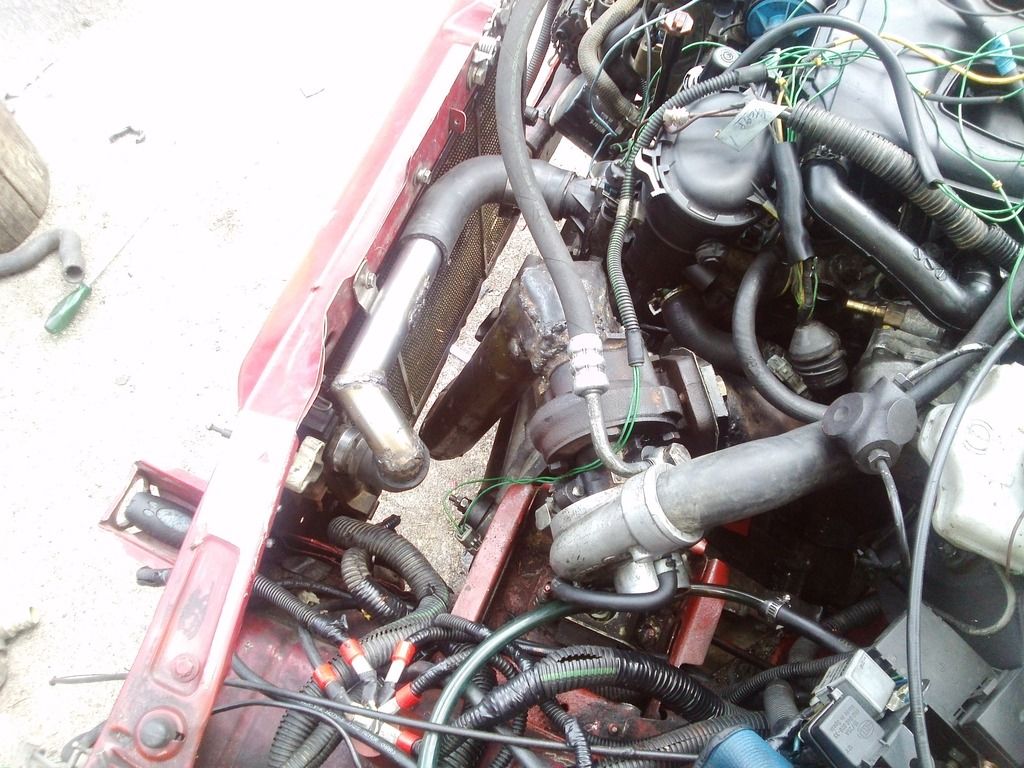

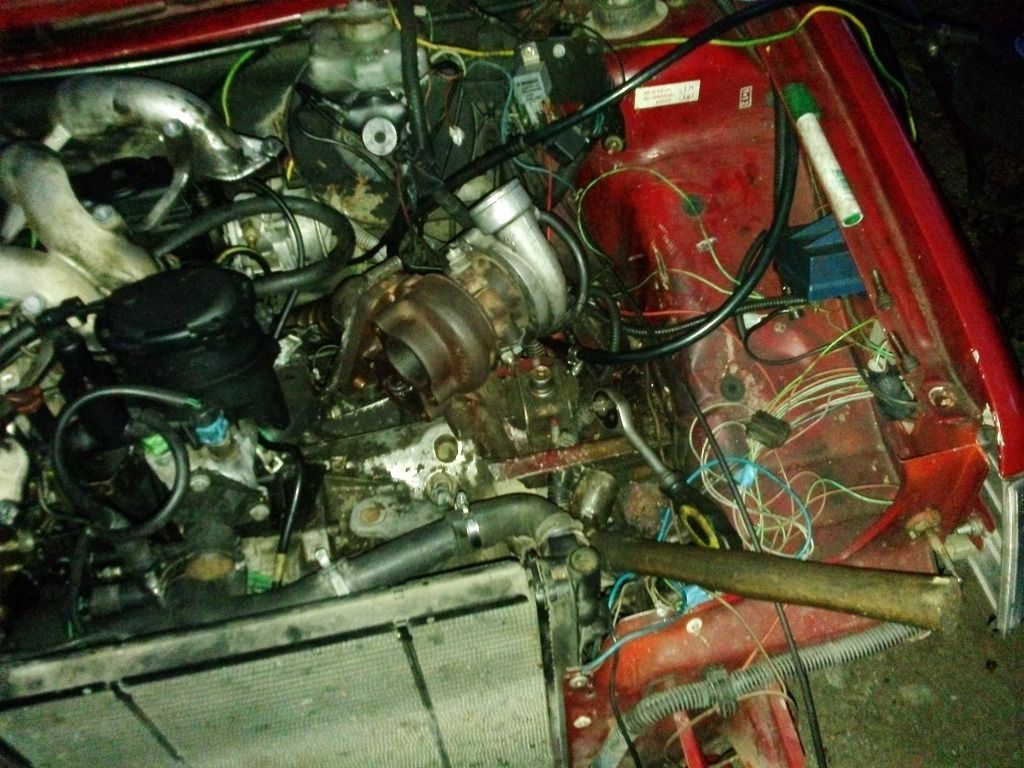

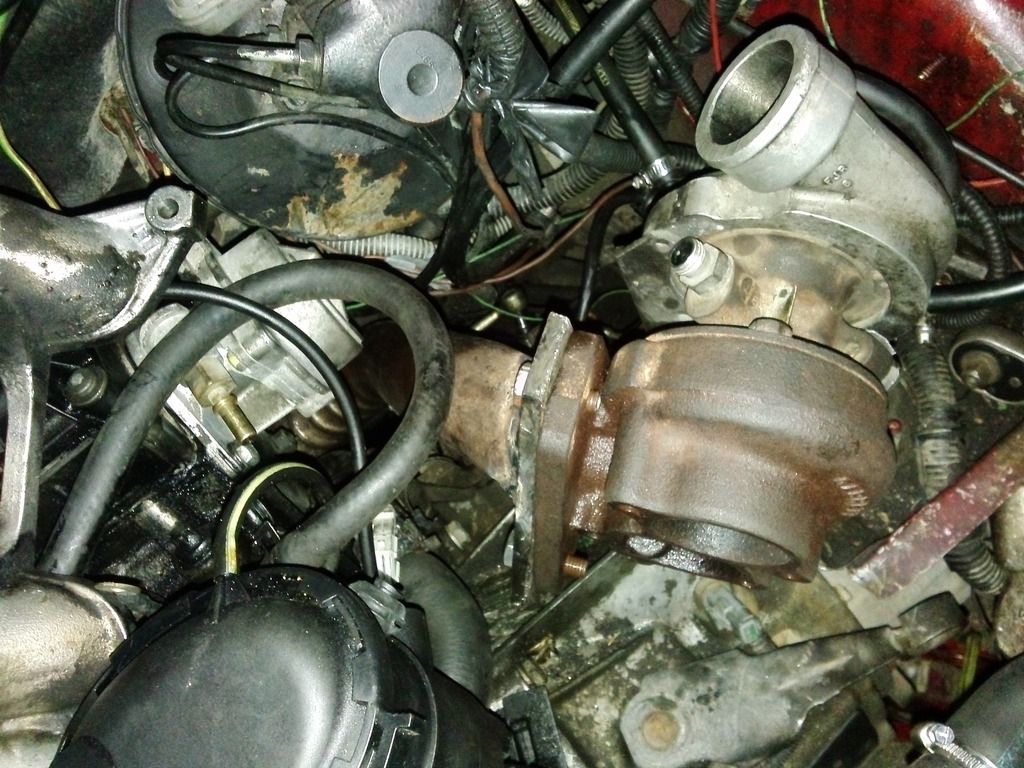

Turbo Garret from a Xantia,wouldn´t fit in the rear of the engine, so
Image[/URL]
Image[/URL]

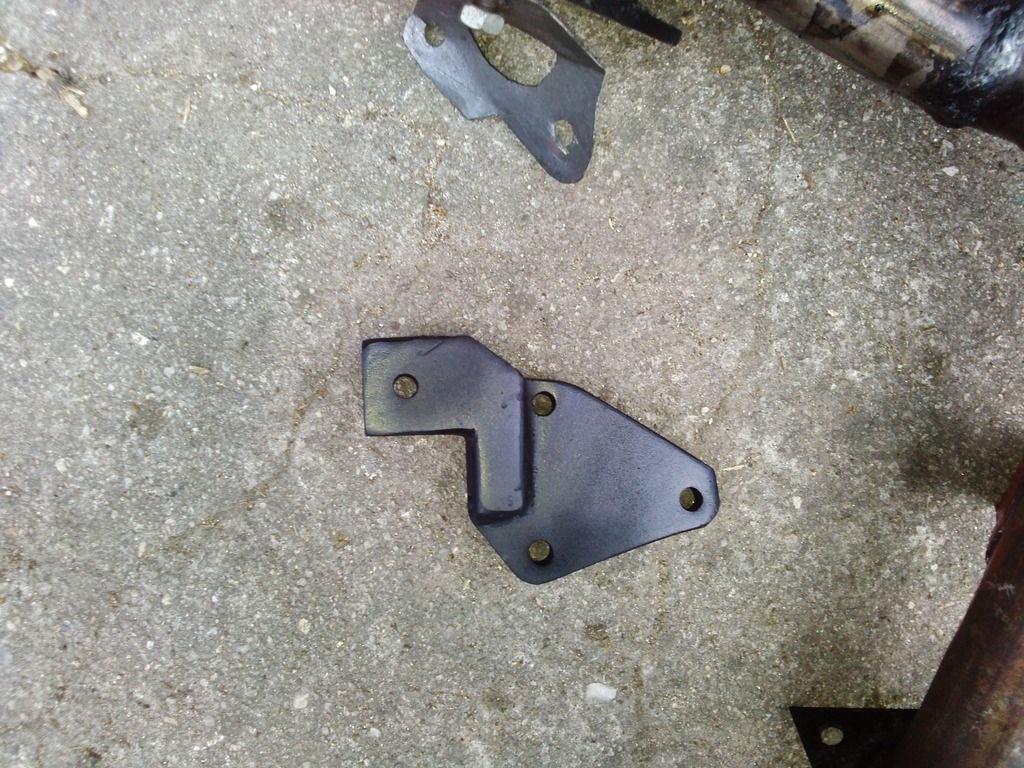

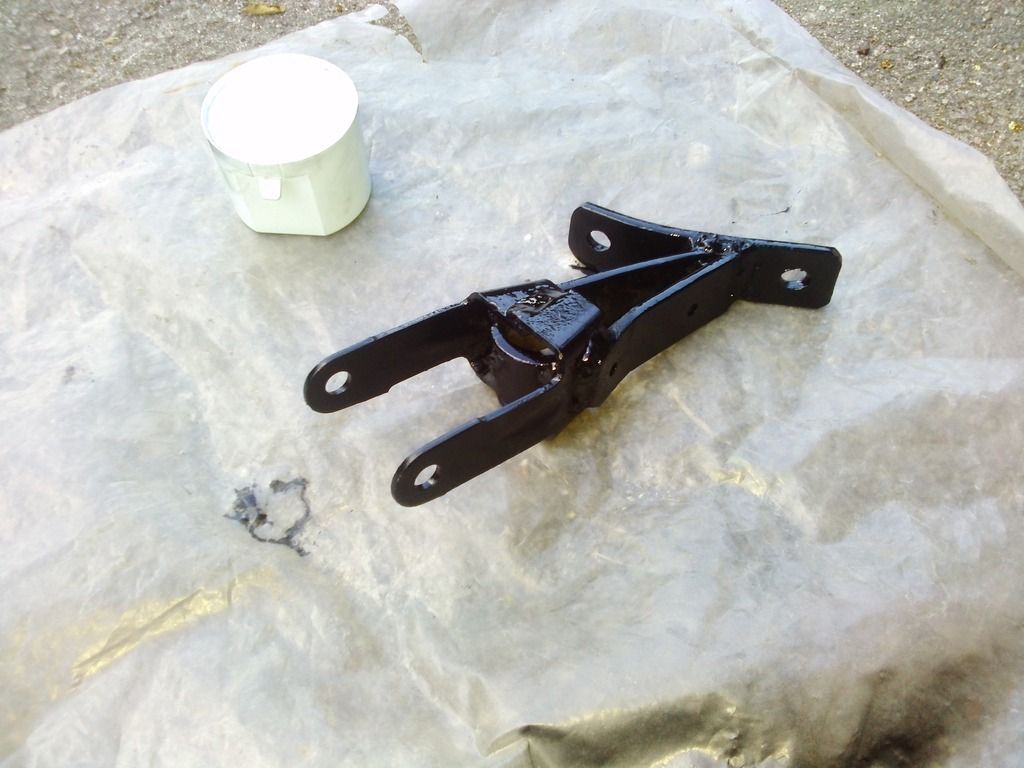

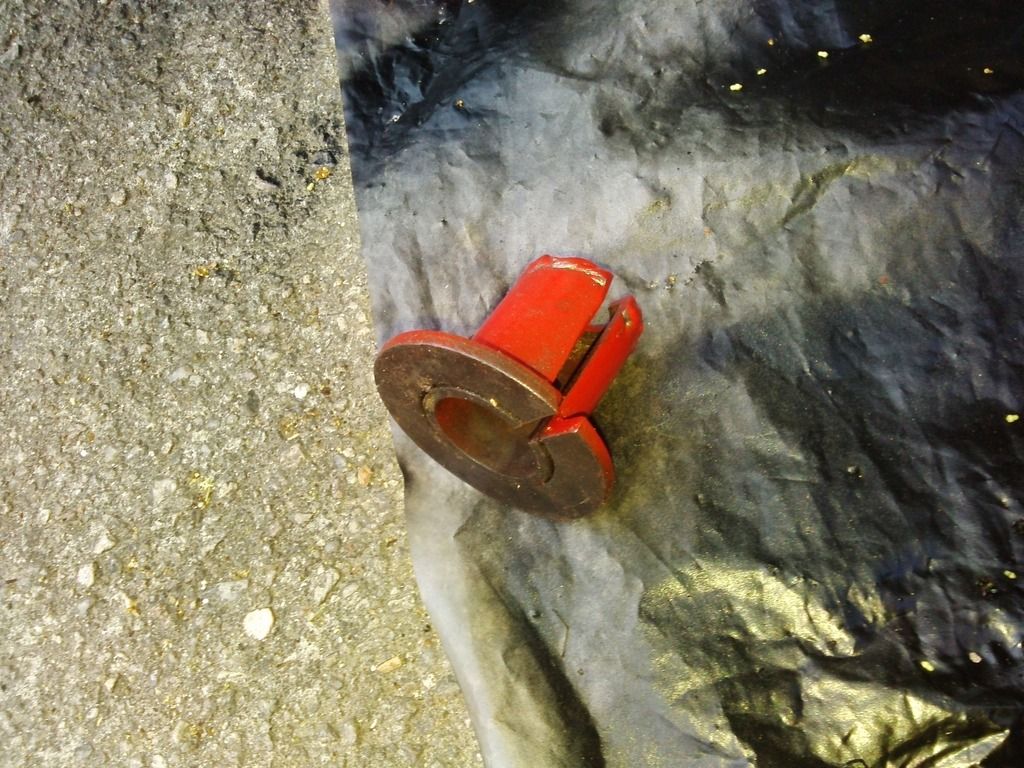

The mounts i made:
Image[/URL]
Image[/URL]
Image[/URL]

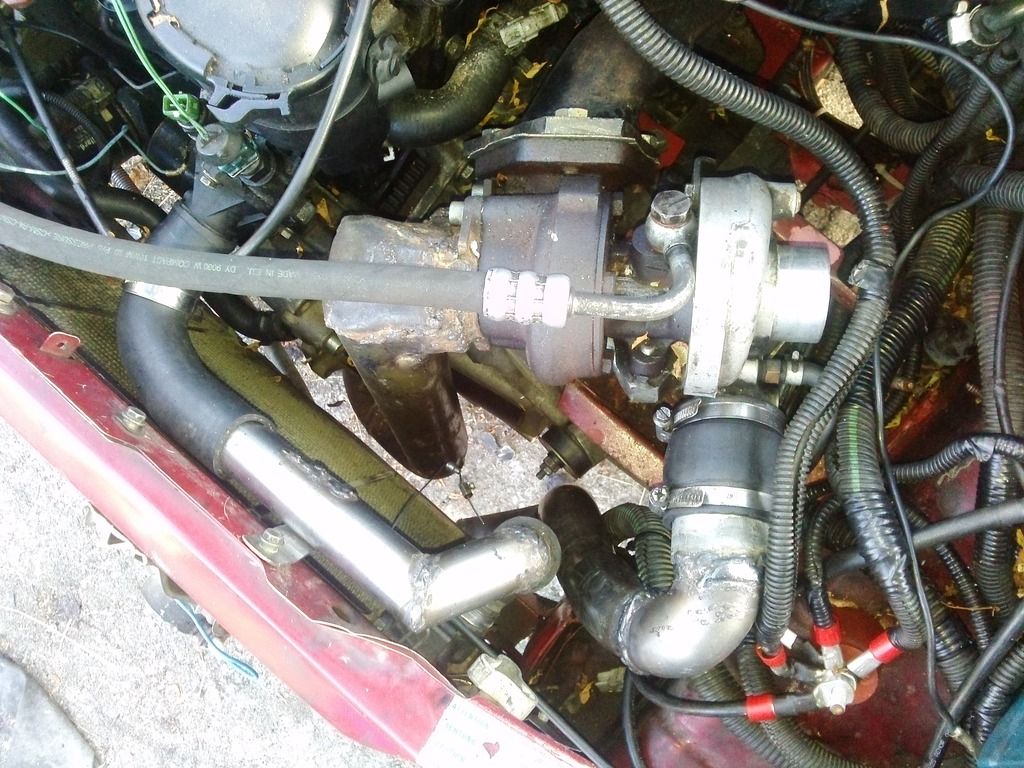

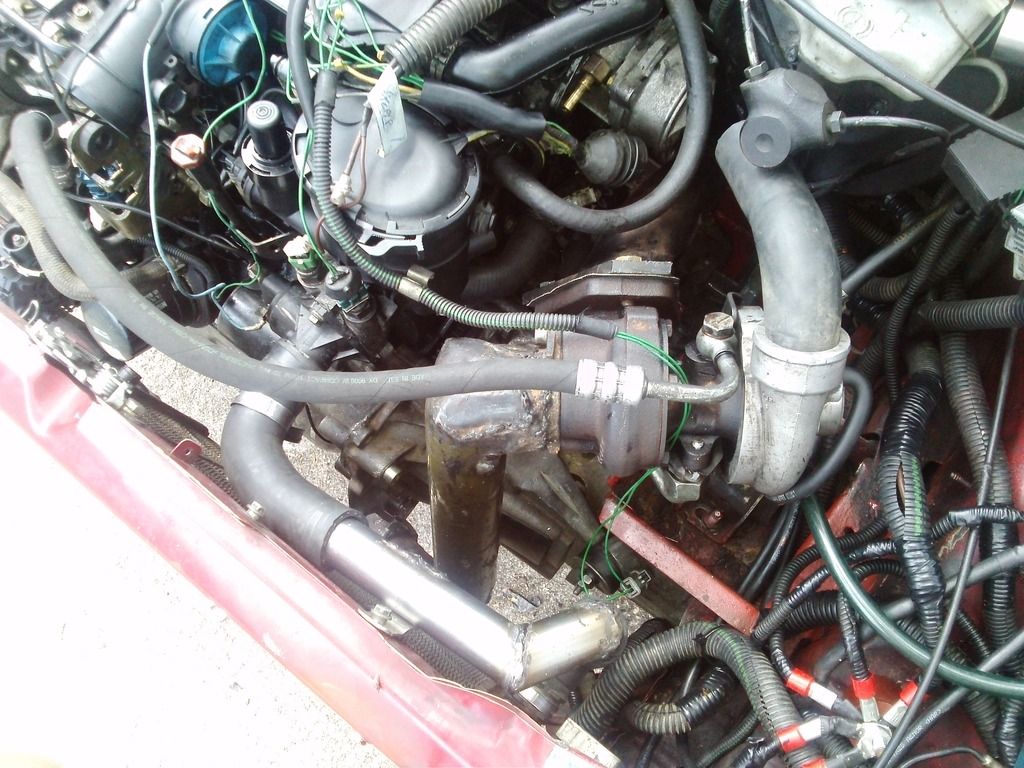

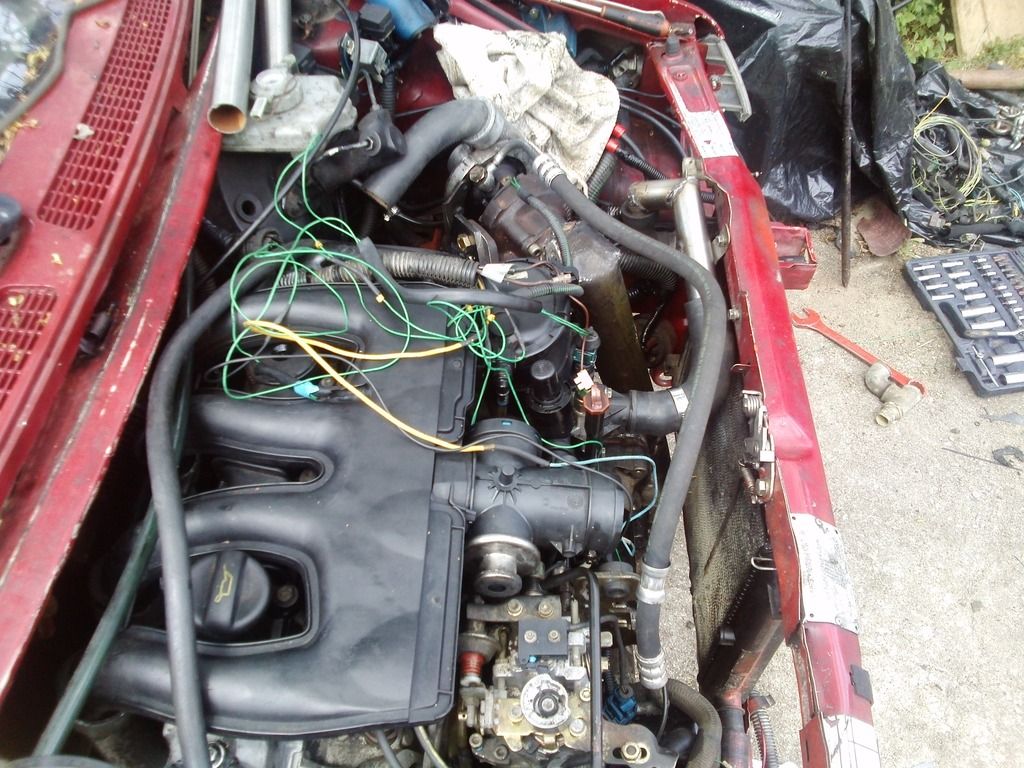

Turbo pipe:
[URL=http://s155.photobucket.com/user/mlopescamacho/media/CAM00214_zpsdpyvhyyb.jpg.html]

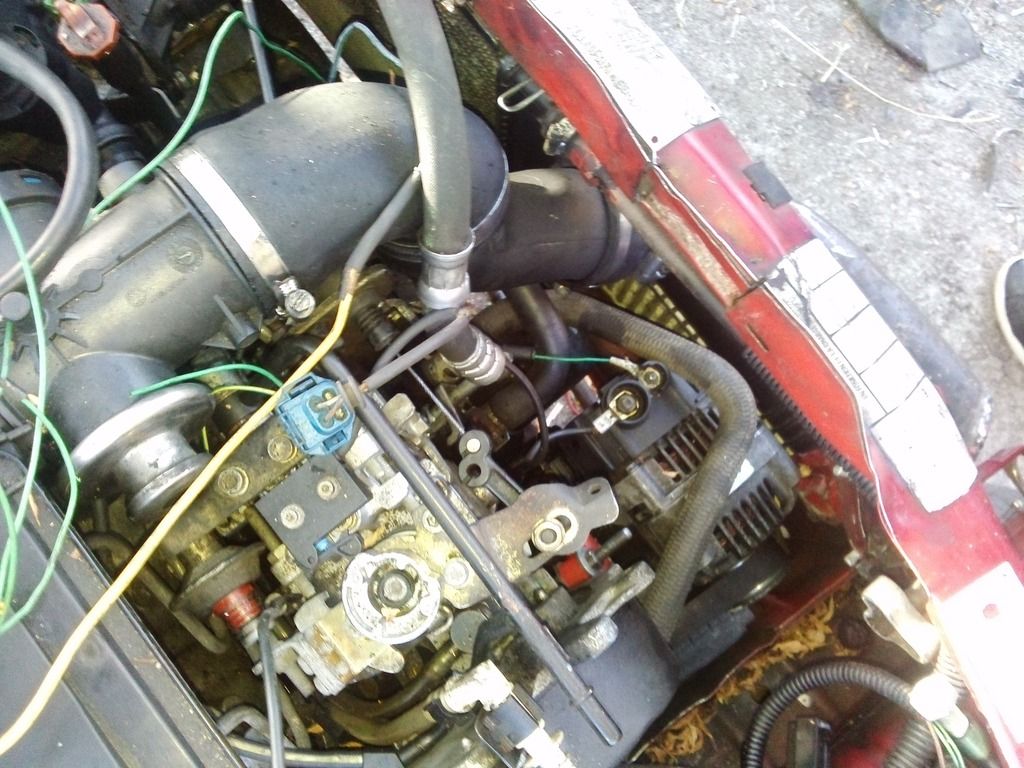

Oil feed ETC
Image[/URL]
Image[/URL]
The downpipe (need to do a better one)
Image[/URL]

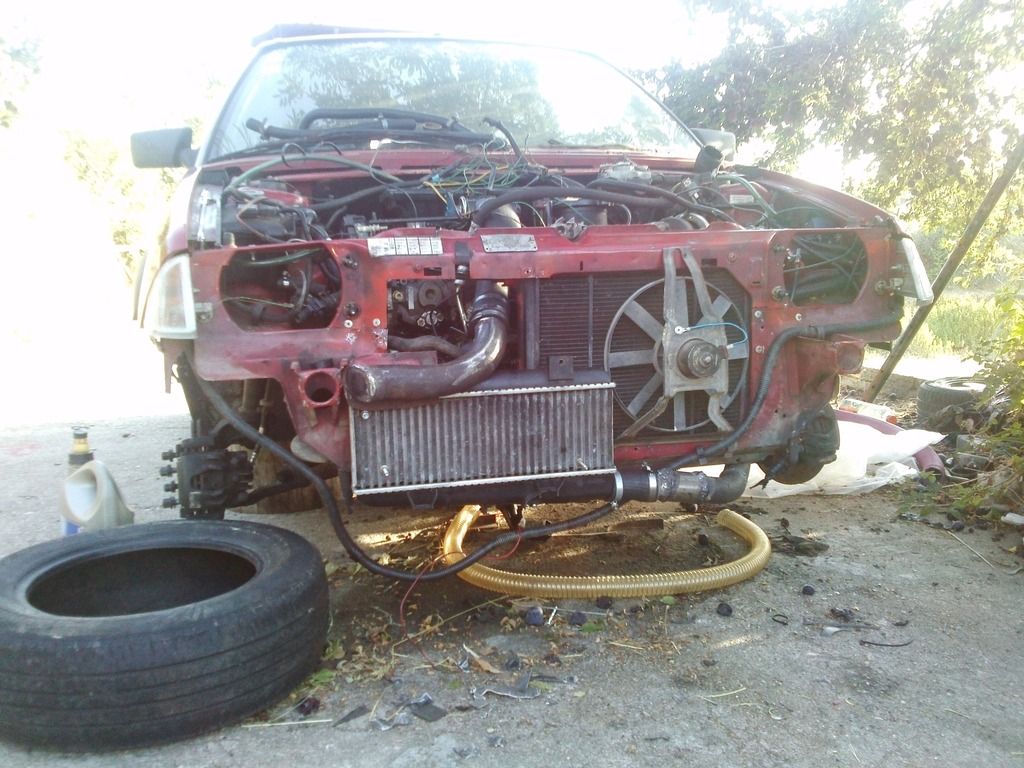

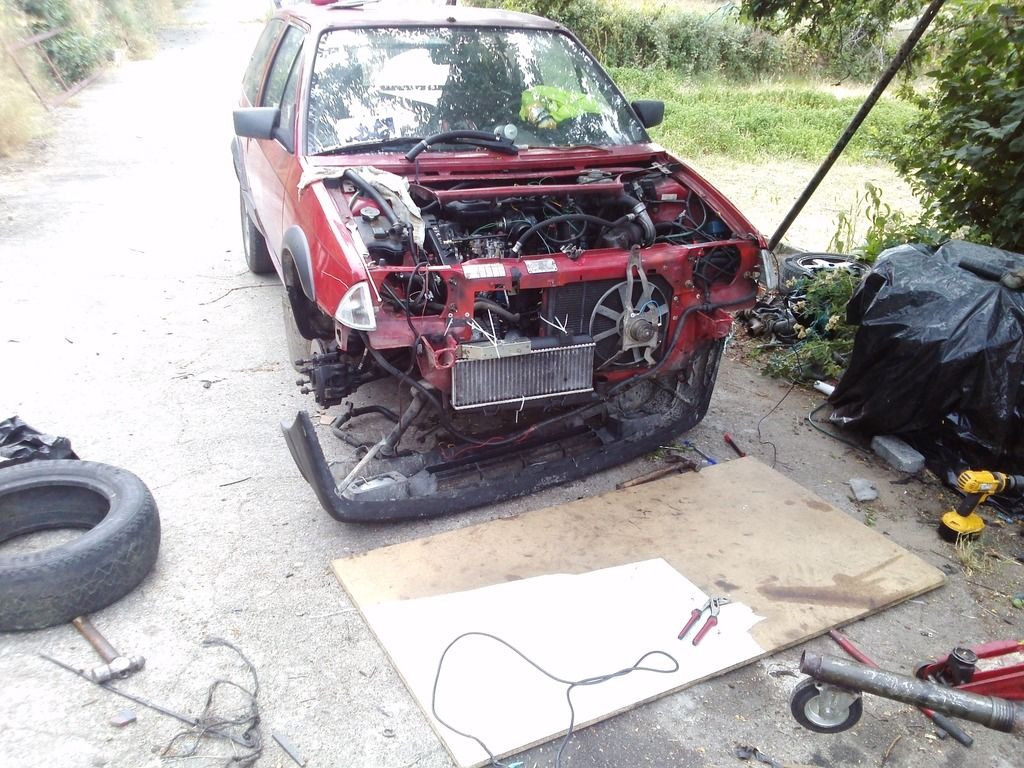

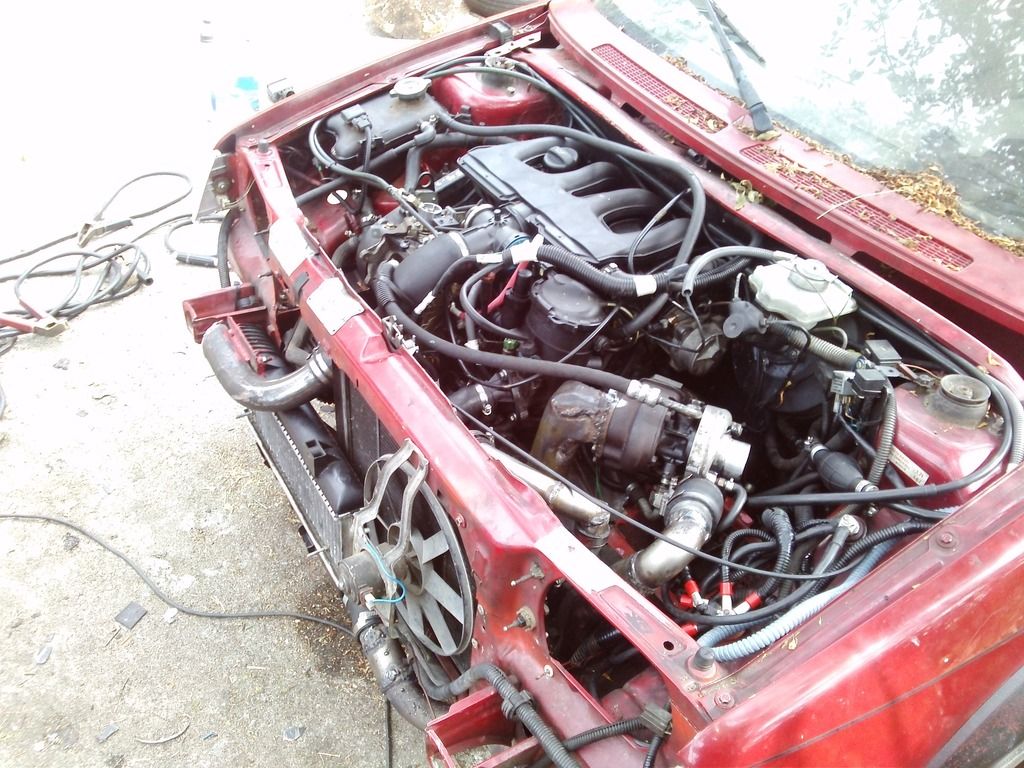

Front:
Image[/URL]
had to move the fan to the front and invert the rotation
Image[/URL]

Image[/URL]
Image[/URL]
Image[/URL]
Image[/URL]

First Start, It liivees!!
http://vid155.photobucket.com/albums/s3 ... 0ua6ol.mp4

User avatar
ghaz
Paid Member
Posts: 323
Joined: Wed Jul 09, 2014 11:41 am
Location: Staffordshire

Re: AX 1.9td (the SCANIA)

Wed Sep 16, 2015 8:33 am

I have seen that engine put into a 106 before but never an AX, great work!

User avatar
Gizmo
Paid Member
Posts: 6462
Joined: Fri Aug 05, 2005 1:23 pm
Location: Chorley/ Lancaster
Contact:

Re: AX 1.9td (the SCANIA)

Wed Sep 16, 2015 8:52 am

Wow. Well done!

User avatar
Kitch
Paid Member
Posts: 802
Joined: Wed Jul 14, 2004 12:17 pm
Location: Fareham, Hants
Contact:

Re: AX 1.9td (the SCANIA)

Wed Sep 16, 2015 9:44 am

If that fits, a 2.0 CT that the 406 used would fit too, and that's 200bhp/250lbft with light tuning.

Good work, but hope you put some strength back into that chassis rail?
'90 AX GT 3dr White
'83 BX 16TRS Red
'90 BX 16v Red
'99 Saxo VTR 16v Silver
'73 Hillman Imp - VTR power!
'89 TVR S1
'06 Ford S-Max 2.5T
'07 Peugeot 407SW

camacho
Topic Author
Posts: 13
Joined: Tue Sep 15, 2015 10:49 pm

Re: AX 1.9td (the SCANIA)

Wed Sep 16, 2015 3:41 pm

Kitch wrote:
If that fits, a 2.0 CT that the 406 used would fit too, and that's 200bhp/250lbft with light tuning.

Good work, but hope you put some strength back into that chassis rail?


Yeah,i welded the chassis rail, and other things to give the chassis some strength
Will post some pictures of it :)

camacho
Topic Author
Posts: 13
Joined: Tue Sep 15, 2015 10:49 pm

Re: AX 1.9td (the SCANIA)

Wed Sep 16, 2015 3:43 pm

Gizmo wrote:
Wow. Well done!


Thanks!

camacho
Topic Author
Posts: 13
Joined: Tue Sep 15, 2015 10:49 pm

Re: AX 1.9td (the SCANIA)

Wed Sep 16, 2015 3:45 pm

ghaz wrote:
I have seen that engine put into a 106 before but never an AX, great work!


i know a guy that fitted a 2.0 HDI into an ax, but there's not much info of it.Thank you :)

User avatar
AlexanderB
Paid Member
Posts: 474
Joined: Sun Jan 09, 2011 2:37 am
Location: The Netherlands

Re: AX 1.9td (the SCANIA)

Wed Sep 16, 2015 11:09 pm

How did you solve the drive shaft situation? :)
'02 Renault Mégane Station.
'92 AX 1.1i --> 16V trackday/weekend build. (attempt #2)
RIP AX 1.5 Diesel
RIP AX 16V #1

camacho
Topic Author
Posts: 13
Joined: Tue Sep 15, 2015 10:49 pm

Re: AX 1.9td (the SCANIA)

Thu Sep 17, 2015 11:03 am

AlexanderB wrote:
How did you solve the drive shaft situation? :)


I made them, half partner half saxo lol.But i think the 205 1.8 diesel ones fit, will try them soon

User avatar
Arseout
Domokun!
Posts: 8121
Joined: Wed Jun 15, 2005 8:38 pm

Re: AX 1.9td (the SCANIA)

Thu Sep 17, 2015 12:07 pm

=D>
AX 30th Anniversary trip August 2016 will be epic!

camacho
Topic Author
Posts: 13
Joined: Tue Sep 15, 2015 10:49 pm

Re: AX 1.9td (the SCANIA)

Thu Sep 17, 2015 9:57 pm

Arseout wrote:
=D>


8)

User avatar
AlexanderB
Paid Member
Posts: 474
Joined: Sun Jan 09, 2011 2:37 am
Location: The Netherlands

Re: AX 1.9td (the SCANIA)

Thu Sep 17, 2015 10:10 pm

I'm a bit worried about the weld breaking on drive shafts if I were to swap in a gearbox like this one, so if you can find existing shafts that have the right lengths (205) and they do fit, I would really like to know. :)
'02 Renault Mégane Station.
'92 AX 1.1i --> 16V trackday/weekend build. (attempt #2)
RIP AX 1.5 Diesel
RIP AX 16V #1

camacho
Topic Author
Posts: 13
Joined: Tue Sep 15, 2015 10:49 pm

Re: AX 1.9td (the SCANIA)

Fri Sep 18, 2015 3:58 am

AlexanderB wrote:
I'm a bit worried about the weld breaking on drive shafts if I were to swap in a gearbox like this one, so if you can find existing shafts that have the right lengths (205) and they do fit, I would really like to know. :)


Well i dont think they'll break, but the right side one i made is broken,making some noises.
Ill try the 1.8D ones and give a feedback ;)

User avatar
Kitch
Paid Member
Posts: 802
Joined: Wed Jul 14, 2004 12:17 pm
Location: Fareham, Hants
Contact:

Re: AX 1.9td (the SCANIA)

Fri Sep 18, 2015 11:17 am

camacho wrote:
Well i dont think they'll break


camacho wrote:
but the right side one i made is broken,making some noises.


#-o
'90 AX GT 3dr White
'83 BX 16TRS Red
'90 BX 16v Red
'99 Saxo VTR 16v Silver
'73 Hillman Imp - VTR power!
'89 TVR S1
'06 Ford S-Max 2.5T
'07 Peugeot 407SW

camacho
Topic Author
Posts: 13
Joined: Tue Sep 15, 2015 10:49 pm

Re: AX 1.9td (the SCANIA)

Fri Sep 18, 2015 2:19 pm

Kitch wrote:
camacho wrote:
Well i dont think they'll break


camacho wrote:
but the right side one i made is broken,making some noises.


#-o

Not the welds haha.I mean it is worn out.Sorry about my english :)

camacho
Topic Author
Posts: 13
Joined: Tue Sep 15, 2015 10:49 pm

Re: AX 1.9td (the SCANIA)

Sun Dec 13, 2015 6:15 am

Some more pics:
Image[/URL]

Image[/URL]

Image[/URL]

Image[/URL]

User avatar
xchipx
Paid Member
Posts: 98
Joined: Mon Jun 06, 2005 7:05 pm
Location: Sheffield
Contact:

Re: AX 1.9td (the SCANIA)

Tue Dec 15, 2015 6:53 pm

=D> Awesome, should give good mpg too
Cheers,
Mark

camacho
Topic Author
Posts: 13
Joined: Tue Sep 15, 2015 10:49 pm

Re: AX 1.9td (the SCANIA)

Fri Dec 25, 2015 3:59 am

xchipx wrote:
=D> Awesome, should give good mpg too


Thanks man!
It does, but would be better with the xudt gearbox, its too "revvy" with this one
:evil:

User avatar
xchipx
Paid Member
Posts: 98
Joined: Mon Jun 06, 2005 7:05 pm
Location: Sheffield
Contact:

Re: AX 1.9td (the SCANIA)

Sat Dec 26, 2015 7:12 pm

I bet it enjoys wheelspin haha
Cheers,

Mark

camacho
Topic Author
Posts: 13
Joined: Tue Sep 15, 2015 10:49 pm

Re: AX 1.9td (the SCANIA)

Tue Dec 29, 2015 8:12 pm

xchipx wrote:
I bet it enjoys wheelspin haha


Oh yes it does ! haha :twisted:
